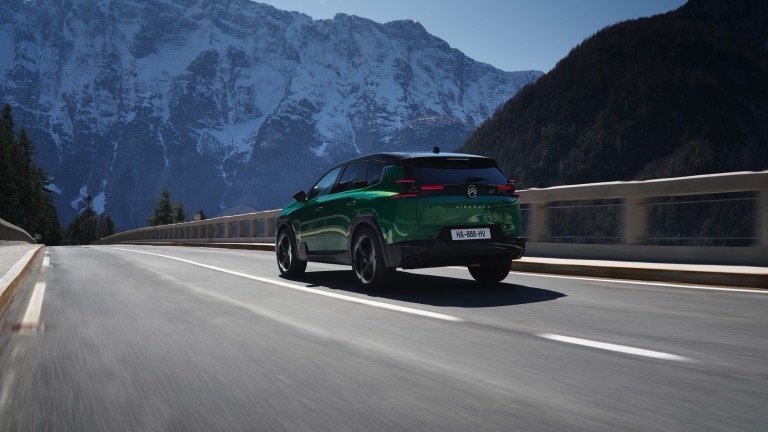

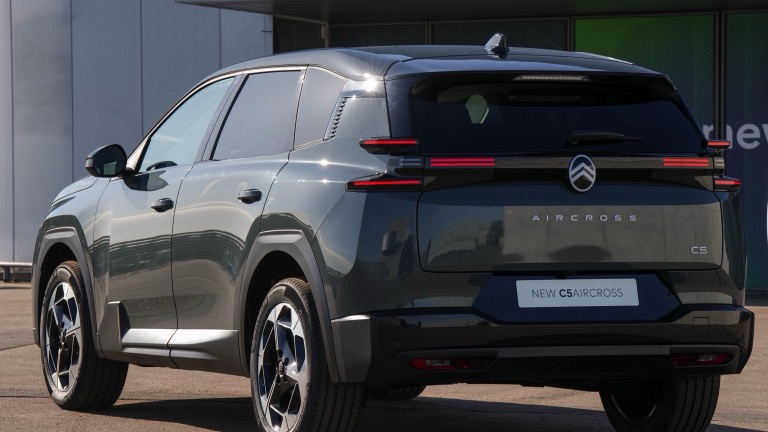

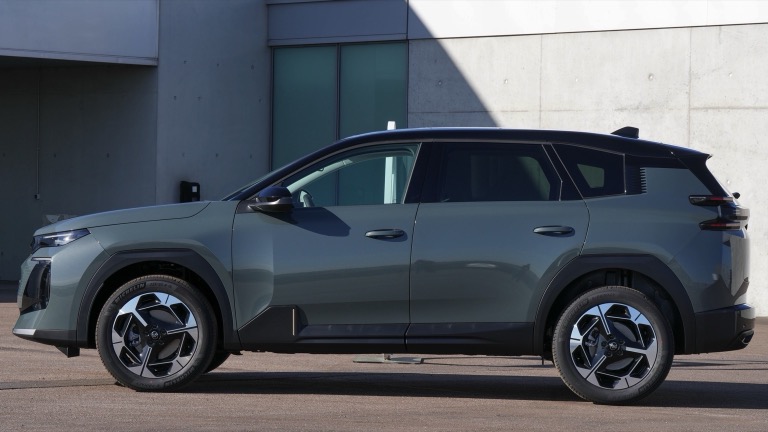

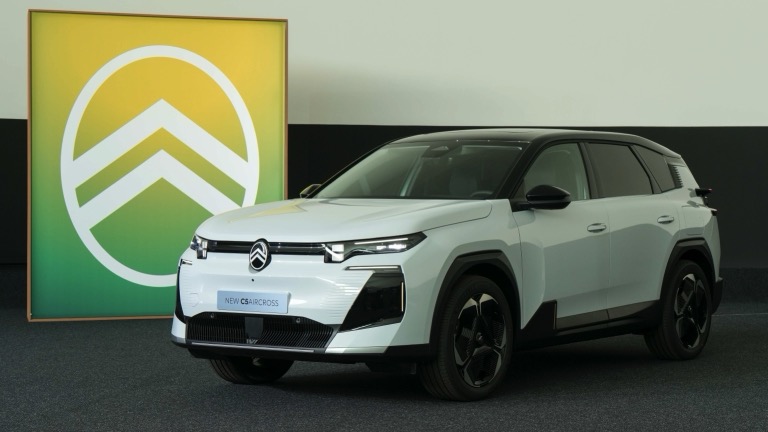

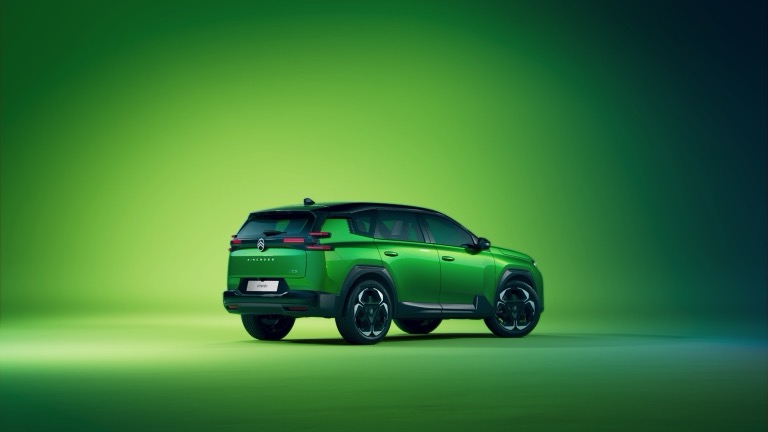

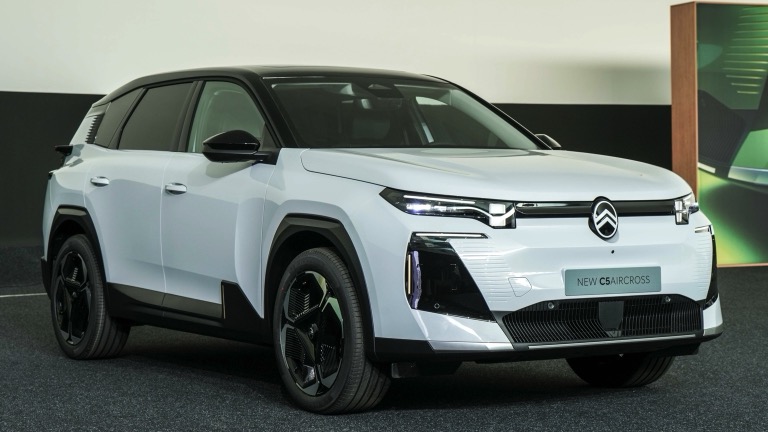

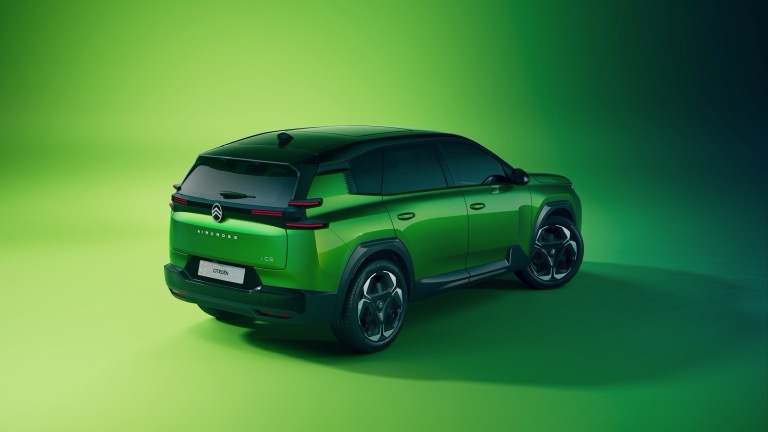

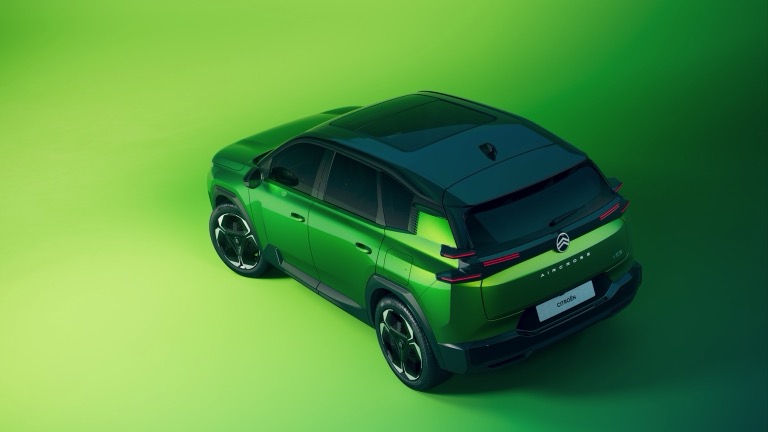

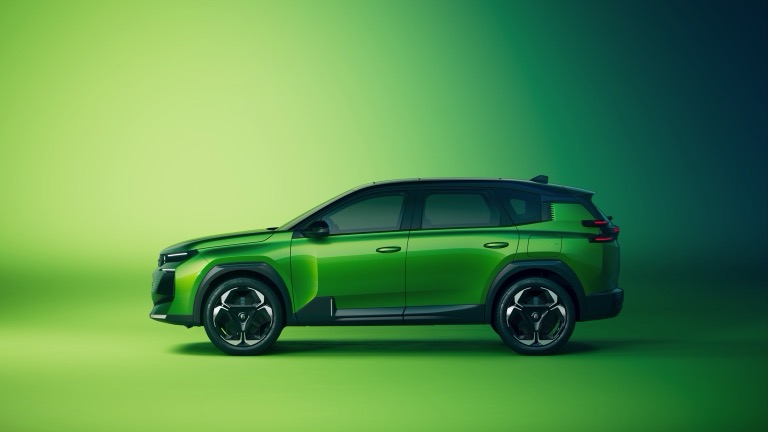

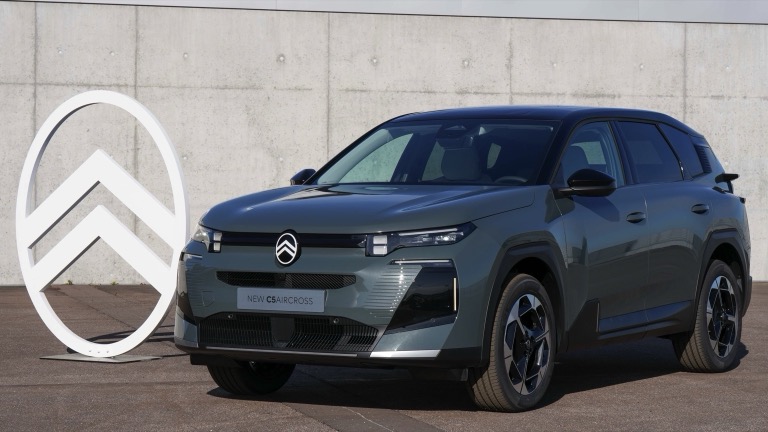

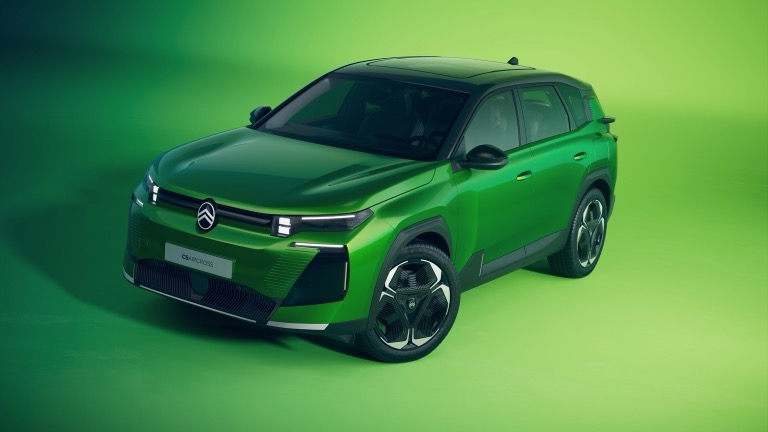

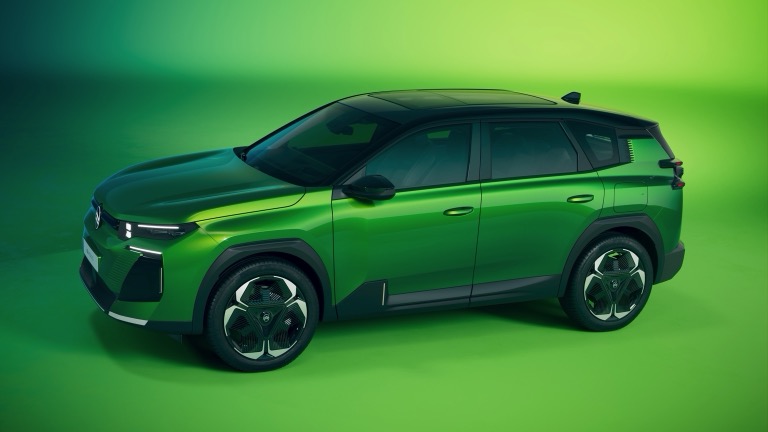

Citroen C5 Aircross Comfort Range

Available since July 2025

73.7 kWhUseable Battery

405 km *Real Range

182 Wh/km *Efficiency

Price

United Kingdom £34,065
The Netherlands €39,490
Germany €42,590

Available to Order

United Kingdom Since July 2025
The Netherlands Since July 2025
Germany Since July 2025
Prices shown are recommended retail prices for the specified countries and do not include any indirect incentives. Pricing and included options can differ by region and do not include any indirect incentives. Dates shown are order dates. Click on a country for more details.

Real Range Estimation between 290 - 585 km

City - Cold Weather * 395 km
Highway - Cold Weather * 290 km
Combined - Cold Weather * 340 km
City - Mild Weather * 585 km
Highway - Mild Weather * 370 km
Combined - Mild Weather * 460 km
Indication of real-world range in several situations. Cold weather: 'worst-case' based on -10°C and use of heating. Mild weather: 'best-case' based on 23°C and no use of A/C. For 'Highway' figures a constant speed of 110 km/h is assumed. The actual range will depend on speed, style of driving, weather and route conditions.
(Advertisement)

Long Distance Suitability
2.5 / 5

First Leg Distance 293 km
Charging Stop 0km
Second Leg Distance 133 km
Total Distance 425 km
First Leg Duration 2h 40min
Charging Stop 15 min
Second Leg Duration 1h 12min
Total Duration 4h 7min
The 'long distance suitability' is a 5-star rating that indicates how suitable a vehicle is for long trips. The rating is based on the 1-Stop Range: the total distance a vehicle can cover with one charging stop of 15 minutes.

Battery

Nominal Capacity 79.9 kWh
Battery Type Lithium-ion
Number of Cells 96
Architecture 400 V
Warranty Period 8 years
Warranty Mileage 160,000 km
Useable Capacity 73.7 kWh
Cathode Material NCM
Pack Configuration 96s1p
Nominal Voltage No Data
Form Factor No Data
Name / Reference No Data

Charging

Home / Destination

Charge Port Type 2
Port Location Left Side - Rear
Charge Power 11 kW AC
Charge Time (0->405 km) 8 hours
Charge Speed 51 km/h

Fast Charging

Charge Port CCS
Port Location Left Side - Rear
Charge Power (max) 160 kW DC
Charge Power (10-80%) 90 kW DC
Charge Time (40->324 km) 36 min
Charge Speed 470 km/h
Autocharge Supported Yes

Plug & Charge

Plug & Charge Supported No Data
Supported Protocol No Data

Battery Preconditioning

Preconditioning Possible Yes
Automatically using Navigation Yes
(Advertisement)

Performance

Acceleration 0 - 100 km/h 8.9 sec
Top Speed 170 km/h
Electric Range * 405 km
Total Power 157 kW (213 PS)
Total Torque 345 Nm
Drive Front

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L Supported No
Max. Output Power -
Exterior Outlet(s) -
Interior Outlet(s) -

Vehicle-to-Home (V2H)

V2H via AC Supported No
Max. Output Power -
V2H via DC Supported No
Max. Output Power -

Vehicle-to-Grid (V2G)

V2G via AC Supported No
Max. Output Power -
V2G via DC Supported No
Max. Output Power -

Energy Consumption

EVDB Real Range

Range * 405 km
Vehicle Consumption * 182 Wh/km
CO2 Emissions 0 g/km
Vehicle Fuel Equivalent * 2.0 l/100km

WLTP Ratings (TEL)

Range 520 km
Rated Consumption 170 Wh/km
Vehicle Consumption 142 Wh/km
CO2 Emissions 0 g/km
Rated Fuel Equivalent 1.9 l/100km
Vehicle Fuel Equivalent 1.6 l/100km

WLTP Ratings (TEH)

Range 503 km
Rated Consumption 177 Wh/km
Vehicle Consumption 147 Wh/km
CO2 Emissions 0 g/km
Rated Fuel Equivalent 2.0 l/100km
Vehicle Fuel Equivalent 1.6 l/100km
TEL = Test Energy Low | TEH = Test Energy High
Rated = official figures as published by manufacturer. Rated consumption and fuel equivalency figures include charging losses.
Vehicle = calculated battery energy consumption used by the vehicle for propulsion and on-board systems.

Real Energy Consumption Estimation between 126 - 254 Wh/km

City - Cold Weather * 187 Wh/km
Highway - Cold Weather * 254 Wh/km
Combined - Cold Weather * 217 Wh/km
City - Mild Weather * 126 Wh/km
Highway - Mild Weather * 199 Wh/km
Combined - Mild Weather * 160 Wh/km
Indication of real-world energy use in several situations. Cold weather: 'worst-case' based on -10°C and use of heating. Mild weather: 'best-case' based on 23°C and no use of A/C. For 'Highway' figures a constant speed of 110 km/h is assumed. The energy use will depend on speed, style of driving, climate and route conditions.
(Advertisement)

Dimensions and Weight

Length 4652 mm
Width 1936 mm
Width with mirrors 2108 mm
Height 1692 mm
Wheelbase 2795 mm
Weight Unladen (EU) 2184 kg
Gross Vehicle Weight (GVWR) 2630 kg
Max. Payload 521 kg
Cargo Volume 565 L
Cargo Volume Max 1668 L
Cargo Volume Frunk 0 L
Roof Load 80 kg
Tow Hitch Possible Yes
Towing Weight Unbraked 750 kg
Towing Weight Braked 1250 kg
Vertical Load Max 80 kg

Miscellaneous

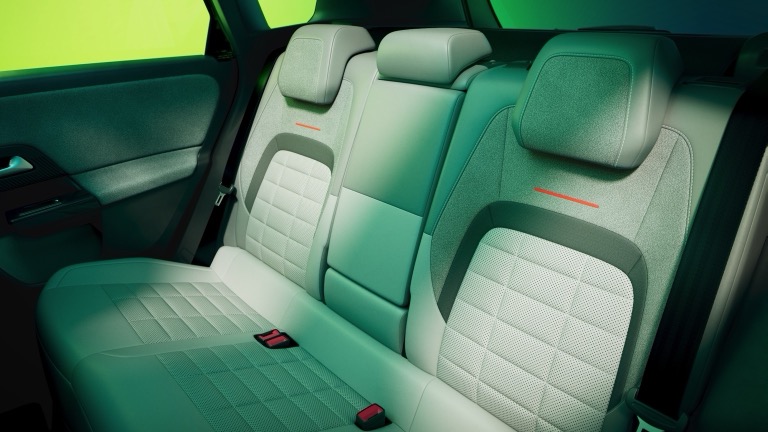

Seats 5 people
Isofix Yes, 2 seats
Turning Circle 11.5 m
Platform STLA MEDIUM
EV Dedicated Platform No
Car Body SUV
Segment JC - Medium
Roof Rails No
Heat pump (HP) Yes
HP Standard Equipment No, optional
* = estimated value. Average energy consumption and range based on moderate drive style and climate. Real-life values may differ significantly. Pricing information might not be actual for some regions. No rights can be derived from the information on this site.

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Citroen C5 Aircross Comfort Range. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Citroen C5 Aircross Comfort Range can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)
Charging Point Max. Power Power Time Rate
Wall Plug (2.3 kW) 230V / 1x10A 2.3 kW 37h45m 11 km/h
1-phase 16A (3.7 kW) 230V / 1x16A 3.7 kW 23h30m 17 km/h
1-phase 32A (7.4 kW) 230V / 1x32A 7.4 kW 11h45m 34 km/h
3-phase 16A (11 kW) 400V / 3x16A 11 kW 8 hours 51 km/h
3-phase 32A (22 kW) 400V / 3x16A 11 kW † 8 hours 51 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

(Advertisement)

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Citroen C5 Aircross Comfort Range.

  • Max. Power: maximum power provided by charge point
  • Avg. Power: average power provided by charge point over a session from 10% to 80%
  • Time: time needed to charge from 10% to 80%
  • Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging Point Max. Power Avg. Power Time Rate
CCS (50 kW DC) 50 kW 45 kW † 72 min 230 km/h
CCS (100 kW DC) 100 kW 75 kW † 43 min 390 km/h
CCS (150 kW DC) 150 kW 85 kW † 38 min 440 km/h
CCS (175 kW DC) 160 kW † 90 kW † 36 min 470 km/h
CCS (350 kW DC) 160 kW † 90 kW † 36 min 470 km/h
This vehicle supports Autocharge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Citroen Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Citroen C5 Aircross Comfort Range. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

  • Max. Power: maximum charge power during charging session
  • Charge From: battery percentage (% SoC) where charging session is started
  • Charge To: battery percentage (% SoC) where charging session is ended
  • Time: time needed for charging session
Citroen Claimed Specifications
Max. Power Charge From Charge To Time
160 kW 20 % 80 % 30 min

Long Distance Suitability

How suitable an electric car is for long trips depends not only on the range. How quickly the car can charge plays an almost equally important role. Whether an EV is suitable for long trips depends on the battery capacity, efficiency, and fast charging capability.

To easily compare cars among each other, a benchmark has been established that combines these factors into the total distance a vehicle can cover with one 15-minute charging stop: the '1-Stop Range'. Based on the 1-Stop Range, the 5-star rating is determined. The result of the benchmark is shown in the graph below.

1-Stop Range

+

5-Star Rating

+

Revision of Rating

+

Citroen C5 Aircross Comfort Range
2.5 / 5

0
1
2
3
4
5
333 km
3h 2min
15 min
151 km
1h 22min
293 km
2h 40min
15 min
133 km
1h 12min
425 km (4h 7min)
261 km
2h 22min
15 min
118 km
1h 4min
379 km (3h 41min)
0 km
100
200
300
400
500
600
700
800
Mild Weather
484 km 1-Stop Range
Average Conditions
425 km 1-Stop Range
Cold Weather
379 km 1-Stop Range
